Reading time: 5 minutes
Immediate response

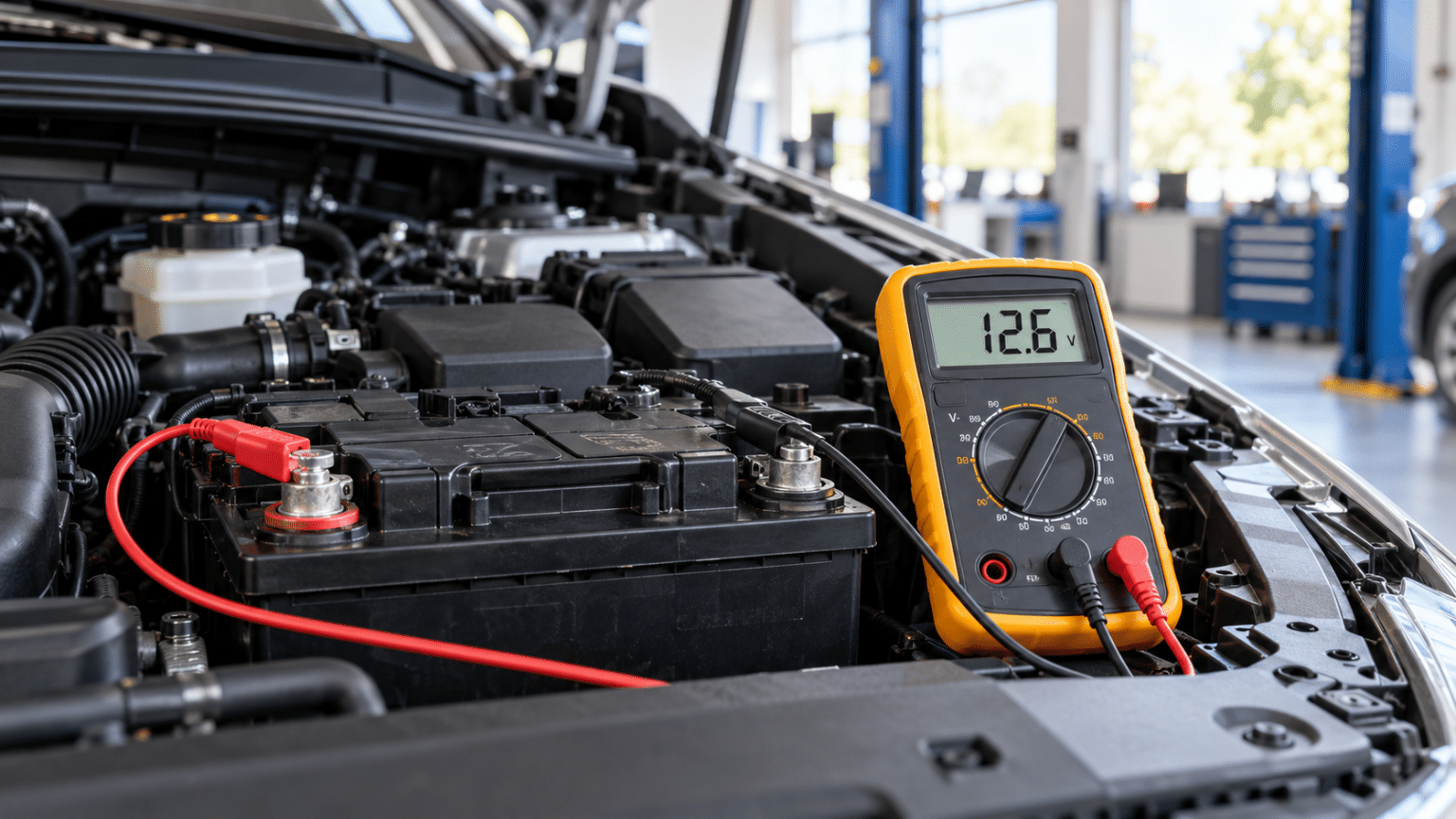

To check the car battery voltage, set the multimeter to direct voltage (V⎓), connect the red lead to the positive (+) terminal and the black lead to the negative (−).
With the engine off and the battery at rest, 12.6–12.8 V generally indicates a well-charged 12 V lead-acid battery. Around 12.2 V has a slight charge, while near 12.0 V the battery is severely discharged.
The voltage, however, mainly indicates the state of charge: it does not guarantee that the battery is still efficient.
What you will learn:
How to set up your multimeter without errors.
Where to connect the test leads.
What values indicate a charged or discharged battery.
How to interpret voltage with the engine running.
When a more thorough check is needed.
Index
A multimeter check takes just a few minutes and can help you determine if your battery is low on charge before the car starts hard.
How to prepare the multimeter
A digital multimeter allows you to check battery voltage in seconds.
Before starting, park your car safely, turn off the engine, and turn off lights, air conditioning, and other electrical appliances.
Set the tool like this:
Insert the black lead into the COM jack.
Insert the red one into the V socket.
Select the DC voltage (V⎓ or DCV).
If your multimeter is manual, choose the 20V range or the next higher.
Caution: Do not use ammeter mode to measure voltage. Connecting a meter set to current directly to the battery terminals can cause a short circuit.
HELPFUL TIP
Digital multimeter for cars
Useful for checking battery voltage and carrying out simple checks on the electrical system.
See on Amazon →

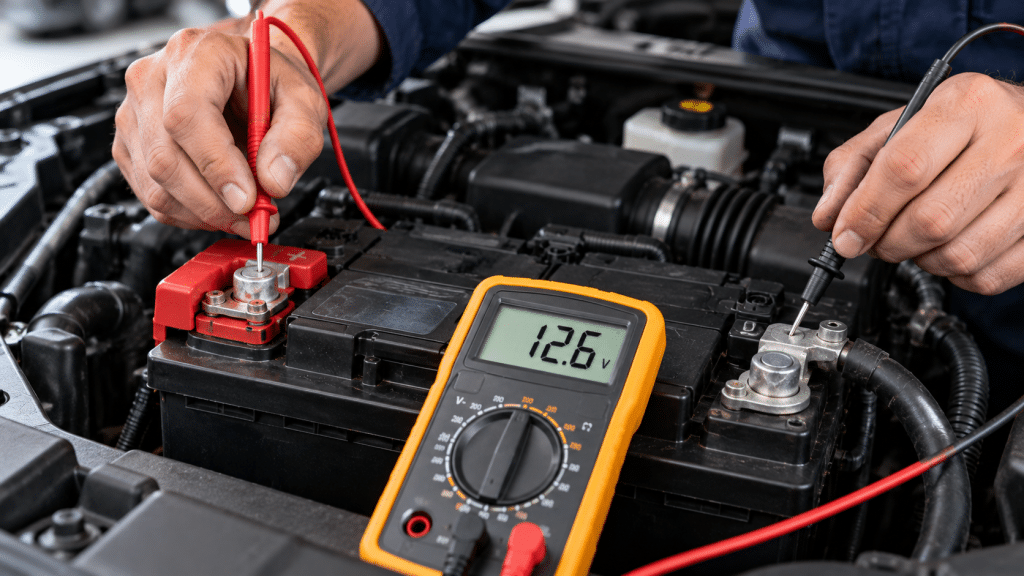

How to check car battery voltage
For a reliable measurement, the battery should have been idle for a few hours, without recent charging and without significant electricity consumption.
Proceed as follows:
Identify the positive (+) and negative (−) terminals.
Place the red probe on the positive.
Place the black one on the negative.
Read the value on the display.
Write down the result to compare it with later measurements.
If the display shows a negative number, you probably have the leads reversed.
Avoid allowing the metal parts of the tips to touch each other or other metal parts.
On some cars, the battery is located in the trunk or under a seat. If the manufacturer provides remote connection points, use those indicated in the manual.
Car battery voltage table: which values are correct?
These values are indicative for a common 12 V lead-acid battery, measured at rest and at moderate temperature.
Voltage | Indicative interpretation |
|---|---|
12.6–12.8 V | Battery well charged |
12.4–12.5 V | Partially reduced charge |

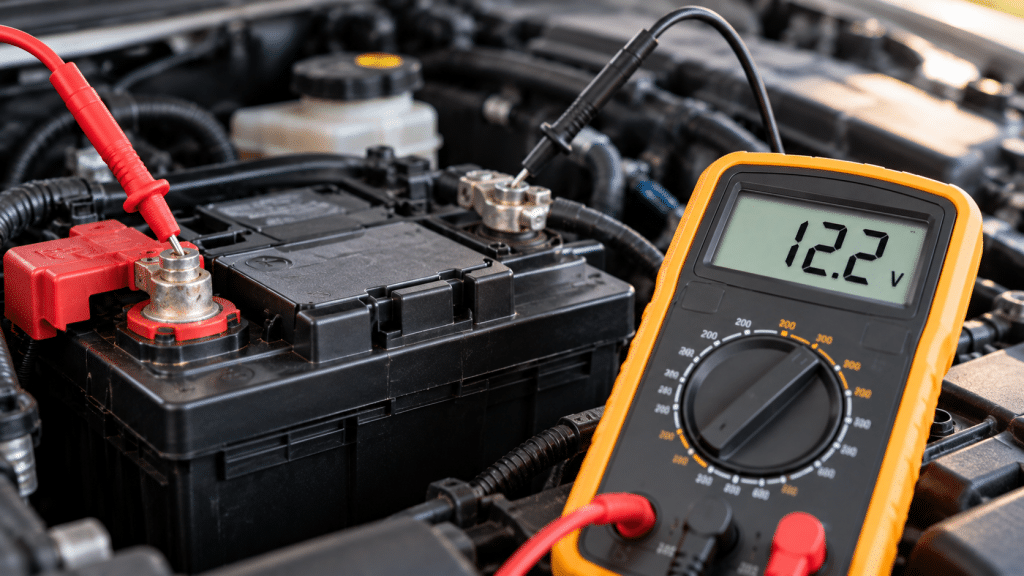

12.2–12.3 V | Battery pretty low |
12.0–12.1 V | Very low charge |
Below 12.0V | Battery severely discharged |
A battery may show 12.6V at rest and still fail to start the engine.
This happens, for example, when it is damaged and can no longer supply sufficient current under load.
When temperatures drop, an already undercharged battery can have more difficulty starting. Find out more Why does a car battery die in the cold and what to do?.
How to check voltage with the engine running
On many traditional cars, with the charging system active, values approximately between 13.5 and 14.8 V are observed.
On modern cars with intelligent alternator management, however, the voltage can vary significantly.
For this reason, you should not diagnose a faulty alternator based on a single reading.
Furthermore, on hybrid and plug-in cars, the 12V auxiliary battery can be recharged by the DC-DC converter when the vehicle is in the mode intended by the manufacturer.
If your car is having trouble starting or the battery keeps draining, it can be helpful to understand How to distinguish a battery problem from an alternator problem.
Dead or faulty battery: how to tell the difference?
Low voltage does not automatically mean that the battery needs to be replaced.
The causes can be different:
Car left unattended for several days.
Too short journeys.
Electricity consumption with the vehicle off.
Inefficient charging system.
Battery now deteriorated.
If the voltage is low, the first check is to check the condition of the battery and consider charging it with a compatible device.
If the voltage drops rapidly after charging, there may be abnormal current draw or an internal problem with the battery.
To truly verify your health, you need a specific test, not just a voltage reading.
If the battery loses charge even when you are not using the car, read the guide dedicated to Car battery drains when stationary: causes and useful checks.
HELPFUL TIP
12V Smart Battery Charger
Useful for maintaining and recharging the battery when the car is stationary for a long time.
See on Amazon →
Mistakes to avoid when measuring your battery
1. Measure immediately after turning off the engine. Surface charge can cause the voltage to appear higher.
2. Selecting the wrong mode. Always use DC voltage, not AC.
3. Consider 12.6 V a guarantee of efficiency. The battery may still have problems under load.
4. Replace the battery without checking for the cause. If there is abnormal current draw, the new battery may also discharge.
5. Ignoring the manufacturer's procedures. Some modern cars require specific measuring points or procedures.
In summary
Checking your car battery voltage with a multimeter is a simple and useful test.
A well-charged 12V battery typically displays around 12.6–12.8V at rest. Much lower values require attention.
The multimeter, however, does not directly measure the remaining battery capacity and is not a substitute for a professional battery health test.
FAQ - Frequently Asked Questions
Is a 12.3V car battery dead?
It's usually partially discharged, but not necessarily bad. Temperature, idle time, and battery condition must be taken into account.
Can I check the battery without disconnecting it?
Yes. It is usually possible to measure the voltage directly at the terminals, following safety precautions and the manufacturer's instructions.
If the battery reads 12.7 V, is it definitely good?
No. A normal voltage at rest does not guarantee that the battery is capable of supplying the current required for starting.
How much should the multimeter read with the engine running?
Values around 13.5–14.8 V are common on many conventional cars, but intelligent systems may behave differently. Diagnosis must follow the vehicle specifications.
Conclusion
A multimeter can help you identify a low-charged battery before starting difficulties arise.
If the values are abnormal or the battery continues to discharge, also check the charging system and any electrical absorption.
If your car won't start and you suspect your battery is dead, see the guide on How to safely start a car with a dead battery.
